    ISO5 Laminar Airflow Stainless Steel Medical Cabinet Mobile Trolley

    Ask Lasest Price
    Brand Name : alphaclean
    Model Number : customized
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    ISO5 Laminar Airflow Stainless Steel Medical Cabinet Mobile Trolley

    ISO5 Laminar Airflow Stainless Steel Medical Cabinet Mobile Trolley


    Horizontal Laminar Airflow Clean Room Trolley Stainless Steel Material


    transfer Carts with off-grid battery operation provide product protection and enable sterile transportation through inferior cleanrooms (e.g. manual dry freezer loading). Product protection is ensured by means of targeted air flow. A clean and low-turbulence air flow (laminar air flow) flows horizontally into the work area of the transfer cart and escapes into the surrounding area. Airborne particles are collected in a controlled manner. All safety-relevant functions are constantly monitored electronically.

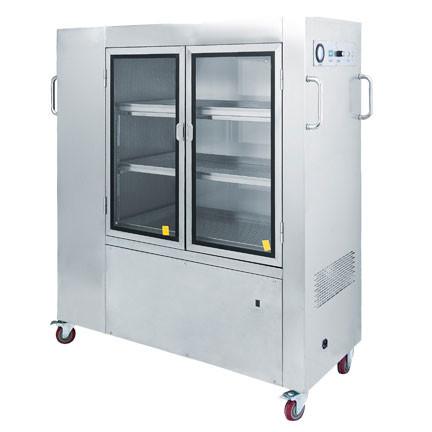

    The whole laminar flow car is made of 304/316L stainless steel plate, and the bottom of the car is made of universal casters with brakes. The body is composed of several major components such as a shell, a high-efficiency filter, an air supply system, a lighting lamp, and an operation module. In addition, a combination of ultraviolet germicidal lamps, microcomputer controllers, lead-acid batteries or lithium batteries, and UPS power devices can be added as needed. The equipment has the advantages of simple structure, flexible movement, convenient operation and use, and beautiful appearance.


    Laminar Flow Horizontal/Vertical Trolley Technical Details:


    1. Self-supporting stainless steel construction on rollers
    2. Removable shelves
    3. Battery-operated for up to 6 hours
    4. Laminar air flow system (horizontal flow)
    5. Pre-filter cartriges behind the perforated plates
    6. HEPA filter H14
    7. Perforated plate air outlet surface
    8. Automatic fan control for a constant LAF speed
    9. Integrated control system
    10.Technical documentation according to the Machinery Directive
    11. Qualification documentation
    12. GMP-/FDA-compliant design
    13. CE declaration of conformity


    Laminar Flow Mobile Trolley Specifications:


    Customer Design is Available.

    ItemParameters
    Cleanliness levelISO5 ( Class100 FS209E)
    Number of colonies≤0.5pcs/dish*(Ø90 petri dish)
    Average air flow0.36~0.54m/s (ajustable)
    Noise≤65dB(A)
    Vibration half peak≤4um
    PowerAC 220V/50HZ
    HEPA FilterH14(99.995%~99.999%@0.3um)
    UPS Power SupplyNetac, Shante and other brands
    AccumulatorLead-acid battery/lithium battery
    ControllerTouch microcomputer controller
    Pressure GaugeDwyer or domestic
    Battery life≥2H(can be customized )
